Floorplan - 2009 Jayco Jay Flight G2 31RKS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

- Our Price: $13,900
-
Sleeps 6
-
1 Slides
-
Rear KitchenFront Bedroom
-
34ft Long
-
6,815 lbs

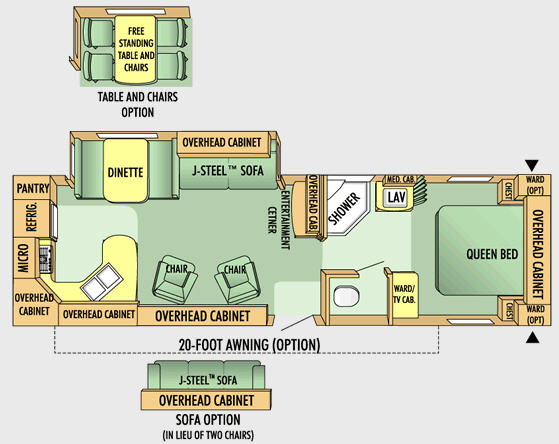

31RKS Floorplan
Specifications
Sleeps | 6 | Slides | 1 |
Length | 33 ft 8 in | Ext Height | 11 ft 2 in |
Int Height | 6 ft 9 in | Hitch Weight | 830 lbs |
GVWR | 9000 lbs | Dry Weight | 6815 lbs |
Cargo Capacity | 2185 lbs | Fresh Water Capacity | 46 gals |
Grey Water Capacity | 65 gals | Black Water Capacity | 33 gals |
Tire Size | 15 | VIN | 1UJBJ02RX91EB0098 |
Description
Single Slide Jay Flight G2 Travel Trailer, Rear Kitchen w/Pantry, Refrigerator, Microwave, 3 Burner Range, Overhead Cabinet, Double Kitchen Sink, Slide Out Booth Dinette & J-Steel Sofa or Opt. Free Standing Table & Chairs, Two Lounge Chairs or Opt. J-Steel Sofa w/Overhead Cab., Ent. Center, Bathroom, Corner Shower, Lav., Private Toilet Area, Front Bedroom, Queen Bed, TV Cabinet, Chest, Wardrobe and More.
Features
Standard Features (2009)
Construction
- .024'' aluminum exterior skin
- R-7 fiberglass insulation in sidewall, roof and floor
- 5/8'' tongue & groove plywood main floor decking
- Roof rafters, constructed of residential style tapered 4-1/2'' trusses
- 1/2'' plywood dinette, bed and bunk platforms
- Wall studs on 16'' centers
- Electric powered slideout
- One-piece, seamless, rubber roof material
- 81'' living room ceiling height
- 2''x3'' longitudinal floor joints on 16''-18'' centers
- Fully-decked roof with 3/8'' plywood
- Poly Flex one piece underbelly covering
- I-Class Cambered structural steel I-Beam frame
Heat, Power and Water
- Hook up for city water
- Systems monitor panel
- 12V demand water pump
- 12V electrical system w/ deluxe 110V 45-amp power converter
- 6-gal. gas/electric DSI auto-ignition water heater
- 30-amp power cord
- 110V G.F.C.I. protected exterior receptacle
- Auto-ignition furnace with wall thermostat
- In-floor ducted heat
- ABS holding tanks
- Outside shower
- Water system winterization kit
- A/C chill grill
Bathroom
- Glass shower door (select models)
- Shower curtain with curved shower track
- Bar and towel ring
- Marine toilet with foot flush
- Toilet paper holder
- Large sink in bathroom
- Medicine cabinet w/mirror
- Vinyl flooring
- Residential 6-panel passage door
Kitchen
- Mixing high rise faucet
- Acrylic residential style sink
- 3-burner range w/9,000 BTU SuperBurner and piezo igniter
- Range hood w/light and exhaust fan
- Extra large picture window at dinette
- Access doors to the dinette booth
- Oversized oven
- Manchester Oak raised-paneled doors and drawers on overhead cabinetry and refrigerator
- Dream dinette mechanism, raises and lowers dinette table top
- Sponge holder under sink
Bedroom
- 312 coil innerspring mattress w/bed struts
- Carpeting w/ padding (select models)
- TV shelf
- Under-bed storage, bed lifts easily on gas struts
- Bi-fold privacy door (select models)
- Bedroom roof vent
- Sliding, pocket-style door (select models)
Exterior
- 15'' radial tires
- Chrome hub caps
- Propane gas bottle cover, made of molded ABS
- Bumper w/drain hoes carrier and end caps
- Heavy-duty grab handle for entry assistance
- E-Z Lube axles
- Front window w/flush-mounted stone guard (select models)
- Galvanized steel wheel wells (insulated on non-slide models)
- Baggage doors are lockable and radius cornered w/heavy duty grab handle
- Painted bottom radius skirting
- Amber patio light w/inside switch
- Radius-cornered fiberglass entrance door w/screen door
- Rain guttering, molded w/drip spouts
- Stabilizer jacks (2 pairs)
- Tinted, black, radius cornered awning style windows
- Big Easy entrance step with 10'' deep treads (select models)
- Exterior speakers, high-output marine grade (2)
Interior
- Manchester Oak Cabinetry
- Hardwood message center
- Decorative nickel lighting over sofa and dinette
- Carpeting w/ padding
- Residential furniture, designed and made by Jayco
- J-Steel convertible sofa
- Overhead cabinetry in slideout room above sofa
- Roof-mounted antenna for radio
- Swivel rockers (1 or 2 on select models)
- Crank up antenna for TV w/signal booster
- Fabric covered box valances w/lambrequin legs
- Pleated night shades
- Wallpaper border
- 19'' LCD High Definition TV in living area
- Raised panel upper cabinet doors (kitchen only)
- Cable and satellite TV prepped
Safety
- Propane alarm
- Break away switch
- Dead bolt lock on entrance door
- Dual hitch safety chains
- Smoke alarm
- Multiple egress windows
- Fire extinguisher
- Tinted safety glass windows
- Carbon Monoxide alarm
Customer Value Package
- A/C central (13,500 or 15,000 BTU) with all thermostat louvered-directional ceiling vents
- Shirt wardrobe in bedroom
- Double 30-lb. LP gas bottles w/regulator
- ABS tub surround
- Tub/Shower skylight
- Bathroom power vent
- Carefree Travl'r 12 volt electric patio awning
- Quilted bedspread
- Sink cover/cutting board (1)
- Microwave over with carousel
- Bi-fold cover for range
- Water heater bypass system
- Multi-Media Premium Sound System AM/FM/CD/DVD stereo with MP3 and iPod input jack
Options
- Front diamond plate
- Enclosed, insulated and heated underbelly
- Linoleum floor in living area
- Portable, outside gas grill
- Roof ladder
- Spare tire and tire carrier w/vinyl tire cover
- Maxistor Door
- Hide-a-Bed
- Water purification system
- Customer Value Package: 13,500 BTU A/C; Bathroom power vent; Multi-Media Premium Sound System™ CD player w/ MP3 and iPod® input jack; Bath skylight; Carefree® electric patio awning; Microwave; Quilted bedspread; 30 lb. propane bottles; Water heater bypass; Shirt closets; Sink cover; Range cover; Tub surround
- CSA standards
- Customer Value Package w/15,000 BTU central A/C
- Trundle bed ILO futon
- Satellite kit: Tripod; dish; coax cable; electronic satellite finder; installation video
Please contact us for more standard features and options.
All standard features and specifications are subject to change.
