Floorplan - 2016 Coachmen RV Catalina 213BH
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-

-
Sleeps 6
-
BunkhouseFront Bedroom
-
26ft Long
-
4,246 lbs

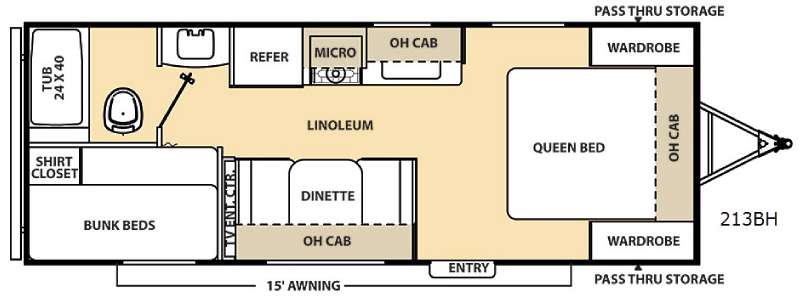

213BH Floorplan
Specifications
Sleeps | 6 | Length | 25 ft 8 in |
Ext Width | 8 ft | Ext Height | 10 ft 7 in |
Int Height | 6 ft 9 in | Hitch Weight | 462 lbs |
GVWR | 7000 lbs | Dry Weight | 4246 lbs |
Cargo Capacity | 2754 lbs | Fresh Water Capacity | 46 gals |
Grey Water Capacity | 40 gals | Black Water Capacity | 30 gals |
Furnace BTU | 20000 btu | VIN | 5ZT2CAKBXGA021977 |
Description
Have fun in this Coachmen Catalina travel trailer 213BH. Enjoy a rear bath layout and a set of bunk beds for more sleeping.
Step inside and find a queen size bed in front with two wardrobes for storage, one on either side of the bed. There is overhead storage also.
To the left of the entry door find a booth dinette with storage above and a TV entertainment center off to the side. Opposite the dinette is where you can easily prepare and cook food for your family while camping using the three burner range with microwave oven, large sink for ease in cleaning up, and refrigerator to keep your perishables cold and fresh. The overhead cabinets and lower cupboards provide plenty of storage for dishes and things.
The rear left corner offers a double bed with single bunk above, and there is a shirt closet for clothing storage.
The opposite corner provides a private 24" x 40" tub/shower and toilet with a separate sink just outside the door.
You will also love the front pass-through compartment for all of your outdoor camping gear, and the 15' awning for protection from the elements to help bring a little living space to the outdoors, and so much more!
Features
- Cambered Structural Steel I-Beam Frame (w/ full width out riggers)
- 3/8" Fully Decked Walk-On Roof
- One-Piece Seamless Walkable Roof
- Radius Entry Steps
- 5/8" Tongue & Groove Plywood Floor Decking
- R-7 Fiberglass Insulation in Sidewalls, Roof & Floor
- Silver E-Coat Maintenance Free Wheels
- G-20 Tinted Windows
- Rain Gutters w/Molded Downspouts
- Platinum .024" Aluminum Exterior Skin w/.030" Skirt Metal
- Painted Bumper w/Drain Hose Carrier and End Caps
- Radius-Cornered Fiberglass Entrance Door
- Roto-Cast Holding Tanks
- Flush Mount Baggage Doors that are Lockable and Radius Cornered
- Polished Aluminum Fender Skirts
- Self-Adjusting Brakes
- 110V GFCI Protected Exterior Receptacle
- 30-Amp Electrical Service w/Deluxe 110V 45-Amp Power Converter
- City Water Hookup
- Solar Power Prep
- Rear Vision Camera Prep
- Large pot & pan drawer
- Full length drawer (1) underneath dinette
- Under-bed storage, bed lifts easily on 2 gas struts
- 2 Shirt closets with mirrors
- Fireplace at the base of the entertainment center (233DS, 243RBS, 293RBKS, 293RLDS, 323TSQB, 333RETS, 343QBDS)
- Standard Fireplace at the base of the entertainment center and in the bedroom (333RETS only)
- AM/FM radio with CD player, iPod and MP3 dock
- Residential in-floor ducted heat (N/A 223FB, 273BH)
- Cable/TV hook-up in front bedroom
- 81” Living room ceiling height
- 2 full-length thermofoil night stands w/ recepts
- Congoleum linoleum flooring
- 30K BTU auto-ignition furnace with wall thermostat (20K BTU 223FB, 273BH)
- Grace Cherry stained wood cabinets
- 12V demand water pump
- Decorative glass in living room cabinets
- Systems monitor panel
- Jack knife convertible sofa with sofa pillows
- Shower curtain with curved shower track
- Neo-angle shower with glass doors (STANDARD 233DS, 243RBS, 253RKS, 263RLS, 283RKS, 293RBKS, 293RLS, 293RLDS, 333BHKS, 333RETS)
- Hard Valance window treatment with lambrequin
- Large dinette tabletop with marine grade pedestal
- Marine toilet with foot flush
- Full size medicine cabinet w/ mirror
- Bathroom exhaust fan
- Drop edge Thermofoil countertop
- Gas/Electric double door refer w/ reversible insert
- High rise faucet w/ large 60/40 double bowl sink
- 3-Burner range w/ 9,000 BTU Superburner™
- Screwed cabinet construction with pocket board solid lumber core stiles
- Easy-View extra large picture window at dinette
- Silverware drawer
- Solid bedroom and bunk room doors (per floorplan)
- Radius corner interior walls (where applicable)
- 13.5K BTU A/C
- Double door refer
- 6 gallon gas/electric DSI water heater
- Metal drawer guides in kitchen
- Radial tires
- Superlube™ axles
- ABS tub/shower surround
- 20lb LP bottles w/ ABS cover and Auto switchover
- Decorative backsplash in kitchen
- Stainless steel microwave
- Patio awning with LED backlight
- Aluminum fender skirts
- Residential quilted bedspread
- Stab jacks (4)
- Water heater by-pass winterization kit
- Continu-us™ TV antenna with RG-6 coax cabling and satellite prep
- Power package (power awning with LED light strip & power tongue jack with light)
- 32″ flat screen TV
- Enclosed and heated underbelly (NA - 223FB, 273BH)
- 13.5K BTU ducted A/C
- 15K BTU ducted A/C
- Multi Media Sound System with CD/DVD player, iPod and MP3 docking
- Swing arm TV bracket
- 50 Amp service with second 13.5K A/C (293RLDS, 323BHDS,323TSQB,333BHKS,333RETS,343QBDS)
- 50 Amp service with second A/C prep (293RLDS, 323BHDS,323TSQB,333BHKS,333RETS,343QBDS)
- Free standing table w/ 4 chairs (N/A U-Dinette floorplans) (STANDARD 293RLDS, 333RETS)
- Stainless steel range with oven IPO 3 burner cooktop
- Tri-fold hide-a-bed sofa (N/A- 233DS, 253RKS and non slide models)
- Kitchen sink covers
- More Wattage for you Cottage audio upgrade
- Range Cover
- Outside shower
- Bar stools (Recommended-233DS, 243RBS, 283DDS, 343QBDS)
- Fireplace in living room (283RKS, 293RLS, 323BHDS CK)
- Skylight above tub/shower
- Spare tire w/tire carrier & cover
- Pull out camp kitchen (273BH, 273DBS, 303BHS) (STANDARD 293QBCK)
- Front diamond plate (mandatory)
- Full wall w/pocket door (Available on 223FB, 273BH)
- Front Queen Bed IPO Quad Bunks (343QBDS)
- Front triple bunks w/ COA cube IPO quad bunk (343QBDS)
- Two (2) 30 lb LP tanks with ABS cover
See us for a complete list of feature and available options!
